WD‑G9 Full‑Band GNSS Spoofing Module for Fixed Stations
All‑Bands · High‑Power · Ethernet‑Controlled
Product Overview
The WD‑G9 is a full‑band GNSS spoofing module designed for fixed‑station applications, supporting real‑time spoofing across 15 frequency bands:
- GPS: L1CA, L1C, L2C, L5
- BDS: B1I, B1C, B2a, B2b, B3I
- GLONASS: L1OF, L2OF
- GALILEO: E1, E5a, E5b, E6
Requiring only a power supply and antenna to operate, the WD‑G9 delivers up to 10 dBm output power and includes a PA‑enable control port for seamless integration with high‑power external RF amplifiers. The design supports 10 W or even higher‑power PAs, enabling significantly extended coverage for demanding applications.
The module features an Ethernet interface with support for both TCP and UDP protocols, allowing flexible network‑based operation. A demo control software package, along with APIs or dynamic libraries, is provided to support secondary development and system integration.
The module is also can be configured to operate in jamming mode.
We also offer complete solution packages and proven source codes for OEM and integration partners.
Key Features
- Full‑Band GNSS Spoofing – Supports 15 frequency bands across GPS, BDS, GLONASS, and GALILEO
- Fixed‑Station Design – Operates with only power and antenna
- High Output Power – Up to 10 dBm native; expandable with external PA modules
- Scalable Coverage – Supports 10 W or higher‑power amplifiers for extended range
- Ethernet Interface – TCP and UDP modes supported
- PA Enable Control – Easy integration with high‑power RF systems
- Developer‑Friendly – Includes demo control software, APIs, and dynamic libraries
- Customizable – Hardware and software modifications available to meet specific requirements
Key Specifications
| Parameter | Specification |
|---|---|
| Supported Frequencies | GPS L1CA/L1C/L2C/L5; BDS B1I/B1C/B2a/B2b/B3I; GLONASS L1OF/L2OF; GALILEO E1/E5a/E5b/E6 |
| Output Power | Up to 10 dBm |
| Extended Output | Compatible with ≥10 W external PA |
| Control Interface | Ethernet (TCP / UDP) |
| Amplifier Control | PA Enable Port |
| Power Requirement | 12V/2A |
| Dimensions | 150 mm × 98 mm × 32 mm |
| Weight | <600g |
| Operating Mode | Fixed‑station spoofing |
| Included Resources | Demo control software, API, dynamic libraries |
| Customization | Interfaces and functionality available |
Applications
- Comprehensive GNSS testing and simulation
- High‑precision navigation system spoofing evaluation
- Long‑range fixed‑station signal coverage
- Defense and security research programs
- OEM integration into advanced RF platforms

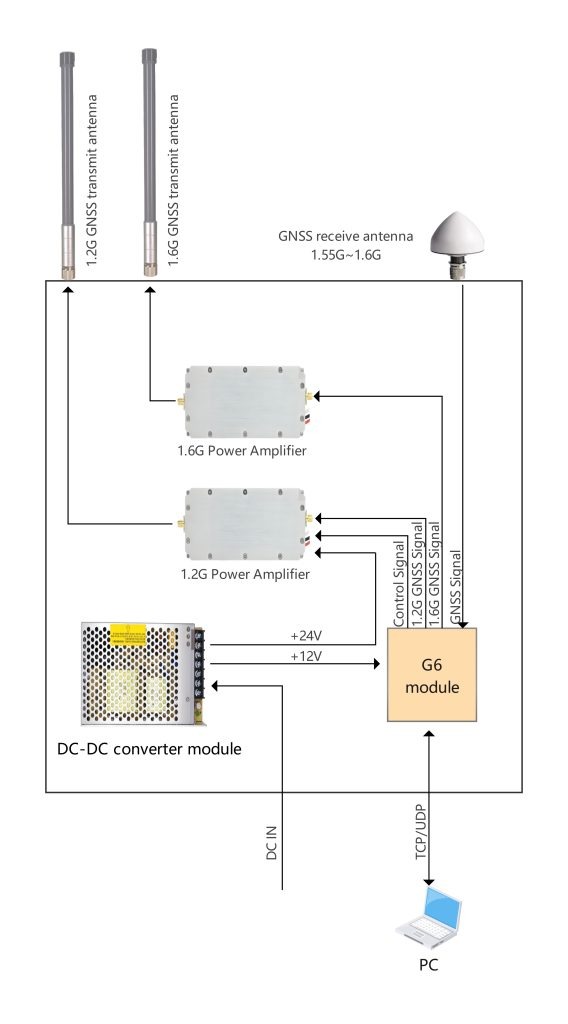

AC Power Input Application Diagram

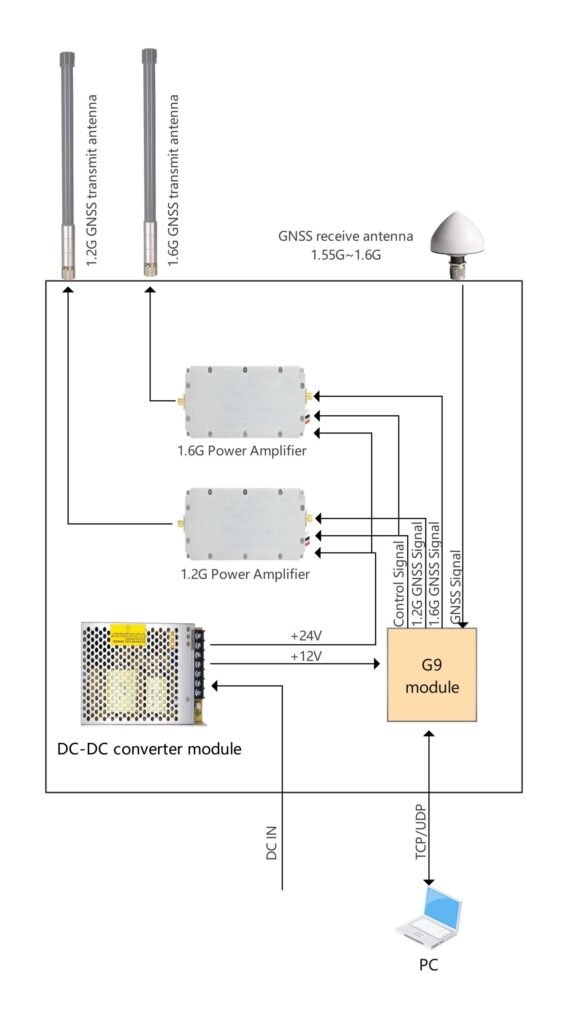

DC Power Input Application Diagram
OEM & Partnership
We provide complete turn‑key solutions, source code, technical documentation, and development tools to accelerate integration into your systems.
Custom hardware and firmware development is available based on customer requirements.
